红外光栅探测器

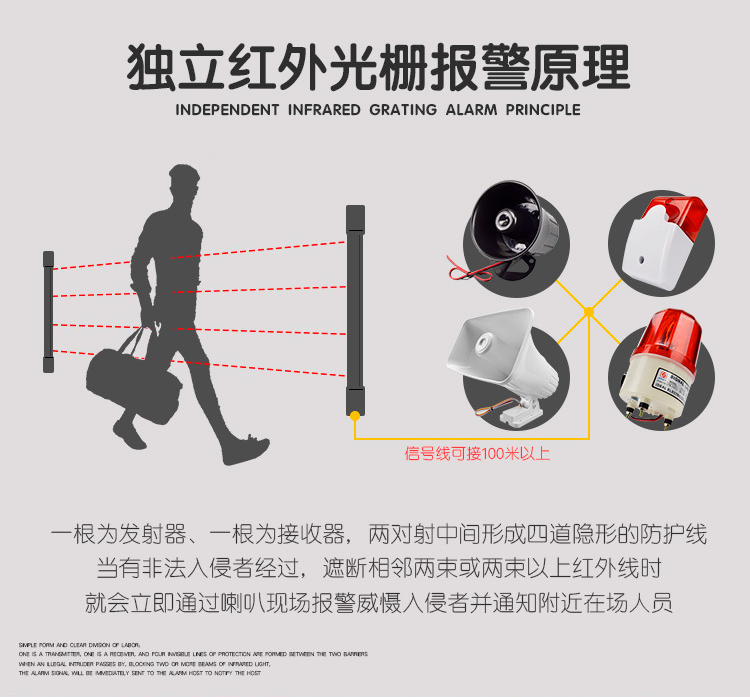

红外光栅（又叫电子光栅或红外栅栏,也叫“红外栏杆“）是主动红外对射（什么是红外对射，请看下面详解）的一种，采用多束红外光对射，发射器向接收器以“低频发射、时分检测“方式发出红外光，一旦有人员或物体挡住了发射器发出的任何相邻两束以上光线超过30ms时，接收器立即输出报警信号，当有小动物或小物体挡住其中一束光线时，报警器不会输出报警信号。

Keyword:

Power IoT sensors Smart power distribution Internet of Things Smart cable tunnel gallery Smart power generation Internet of Things Smart Internet of Things

Category:

常规配电物联网传感器

Free consultation telephone:

0519-85851518

Message

红外光栅探测器

产品概述

主要技术参数

◆ 警戒距离：5M、10M、15M、30M、40M、60M、80M、100M

◆ 光栅高度：36cm~197cm

◆ 光束数：2束12束全系列

◆ 探测方式：相邻2束同时遮断式报警

◆ 反应速度：40ms

◆ 报警输出：触点容量24V，100mA

◆ 电源电压：DC10V~DC18V

◆ 消耗电流：主机50mA、从机40mA

◆ 环境温度：-30℃~+70℃

◆ 调整角度：180度

◆ 外壳：高级铝合金外壳

红外光栅的优点

◆ 低频红外发射：对家用电器（遥控系统）绝无干扰；

◆ 智能光强检测：降低功耗、减少误报；

◆ 多种安装方式：表面和嵌入安装皆可，无须精确对齐；

◆ 外观高贵典雅：追求与现代家庭装修*结合。

◆ 零误报：一代红外光栅，采用变频互射技术，解决了单向式红外光栅不能解决阳光干扰所引起的误报技术难题，避免了太阳光、手电筒、车灯的的直射问题，实现真正意义上的零误报。

◆ 具有防雨雾霜可全天侯户外使用；

◆ 防拆防剪防移动双束识别原理能有效的防止小动物飞鸟等小动物体引起误报；

◆ 灵敏度高防范警戒距离三档可调AGC电路设计；

◆ 对准与否有蜂鸣器响声指示；

◆ 单向式红外光栅不能解决阳光干扰所引起的误报技术难题，本互射式技术得以彻底杜绝，行业；

◆ 防拆开关，设计更合理可靠，确保探测器不受拆卸破坏；

◆ 抗干扰能力强：在风、霜、雨、雪、雾、潮、太阳光斜照的室外恶劣环境下使用；

◆ 采用高档铝合金外壳及精选元器件，整体稳定性好，可靠性高，抗干扰能力强；

◆ 安装简易，调试方便; ±4度自动对焦电路，声光校准提示，180°调角度。
