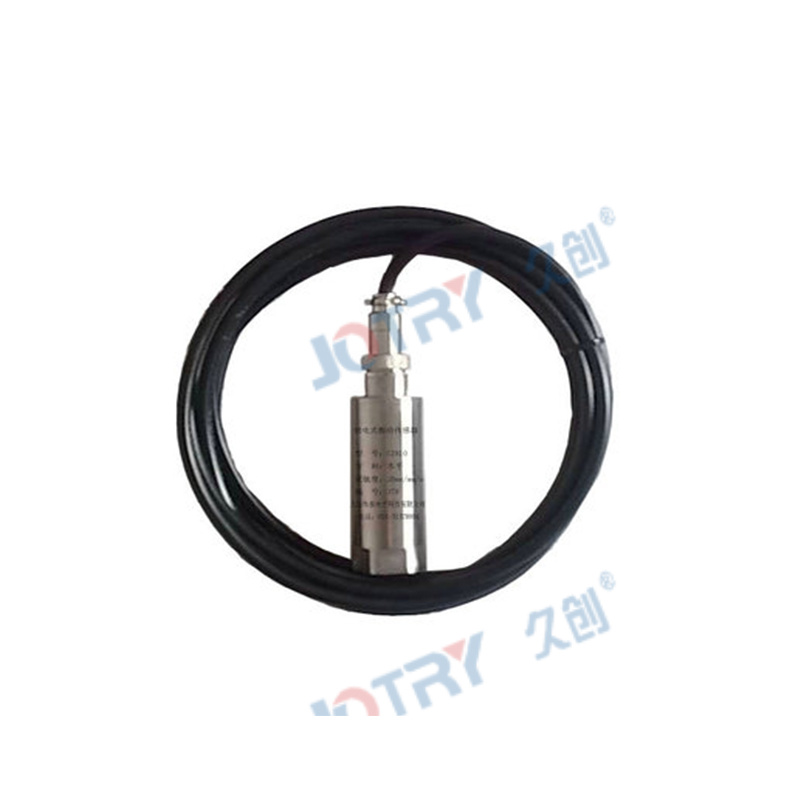

无线振动传感器

一体振动传感器为我公司自主研发的微型变送器，主要由压电敏感元件及测量、转换、积分、放大、变送等主要电路组成。它在原压电式加速度传感器的基础上，增加了内置精密积分电路，实现速度量的输出，具有动态特性优良、频响宽、使用寿命长、外观小而精致的特点。本产品具有接线容错保护，稳定性好，抗干扰能力强等优良特性。

Keyword:

Power IoT sensors Smart power distribution Internet of Things Smart cable tunnel gallery Smart power generation Internet of Things Smart Internet of Things

Category:

变电物联网协议无线传感器

Free consultation telephone:

0519-85851518

Message

振动传感器

产品概述

技术参数

测量范围：振动速度 0-200mm/s

振动加速度 0-50g

振动位移 0-8000um

1. 输出方式：4-20mA两线制（详见引线端标识），RS485通讯

2. 响应频率：2Hz-2000HZ（加速度量）

5Hz-2000HZ（速度量）

10Hz-2000HZ(振动位移量）

3. 速度方向：从底部到传感器（正向）

4. 环境温度：-40℃~+85℃

5. 精确度：±5%

6. 供电电压：+24VDC

7. 可承受最大冲击力：2000g

8. 压电材料：PZT-5

9. 防护等级：Ip67

10. 重量: 约110g

11. 外壳材料：航空铝或不锈钢

12. 防爆等级：EX ia IIB T5 Ga
