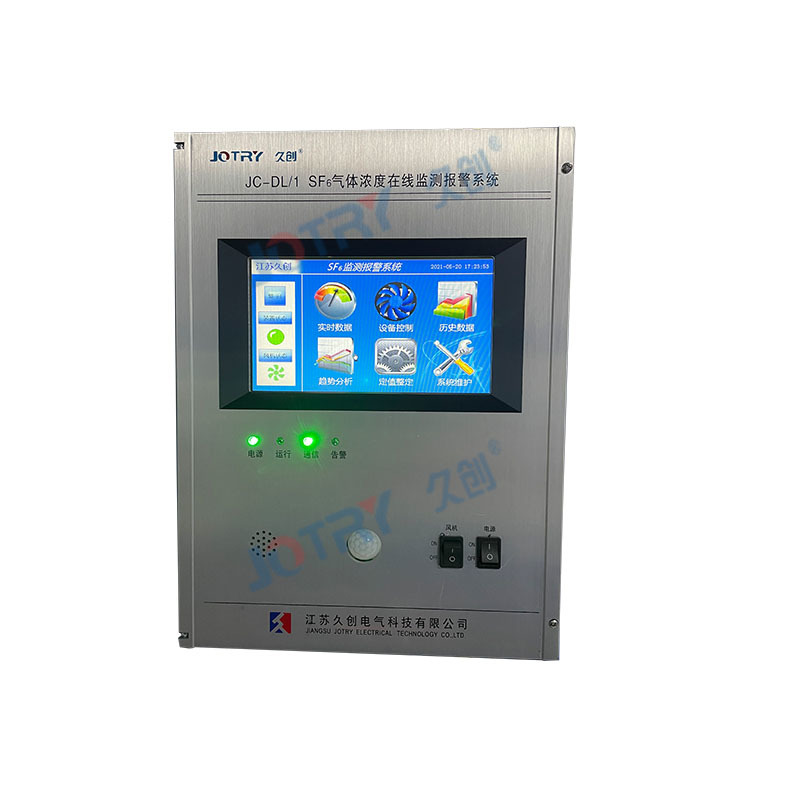

壁挂式主机

8路开关量输入；8路开关量输出 6个RS485通信串口，1路RS232通信串口 4G无线传输功能（选配）通信通道数7，6路RS485，1路RS232 工作电压：AC220V 电磁兼容特性：快速瞬变脉冲群 GB/T17626.4-1999 4级

Keyword:

Power IoT sensors Smart power distribution Internet of Things Smart cable tunnel gallery Smart power generation Internet of Things Smart Internet of Things

Category:

汇聚节点、接入节点、站房网关

Free consultation telephone:

0519-85851518

Message
