Smart power distribution IOT-Products-Jiangsu jotry Electric Technology Co., Ltd.

The JC-MC-ZN03 door magnetic sensor is mainly composed of two parts: a switch and a magnet. The switch part is made up of a reed switch connected by a lead wire, and is shaped and packaged; the magnet part is encapsulated in a plastic or alloy shell with a corresponding magnetic field strength. After the two are separated or close to a certain distance, it will cause the switch to open, thereby sensing the change of the object's position.

Wireless temperature and humidity sensor

FC-5604 temperature and humidity sensor uses high-precision temperature and humidity probes, using LoRa wireless transmission mode, without on-site wiring, replacing traditional wired data acquisition products. The data measurement is accurate, the transmission sensitivity is high, the bit error rate is low, the installation is simple, the cost is low, and the service life is long.

JC-SW-ZN03 liquid level sensor

The liquid level sensor uses a high-performance pressure-sensing chip, combined with advanced circuit processing and temperature compensation technology, to convert pressure changes into linear current or voltage signals.

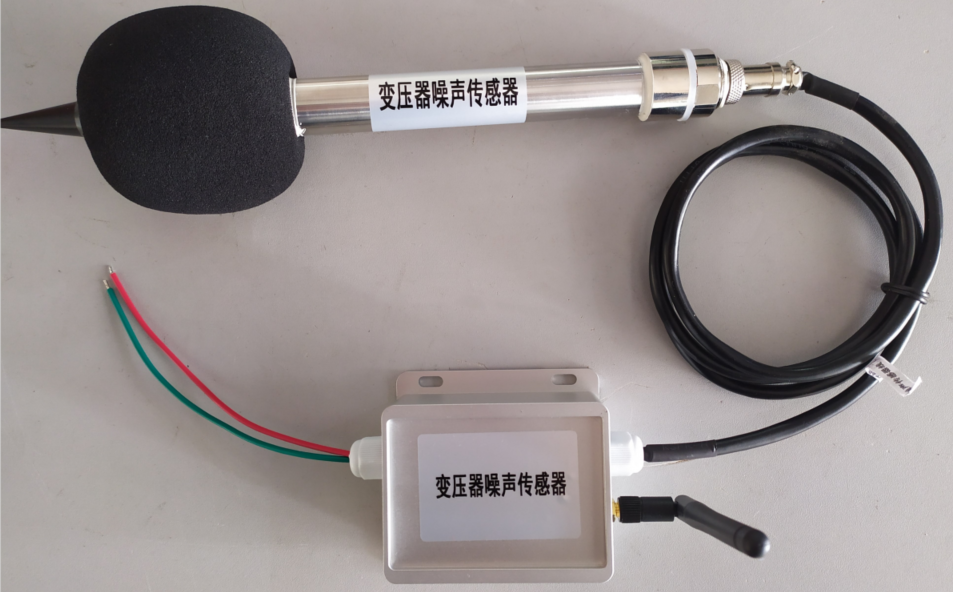

JC-ZY-ZN03 Wireless Noise Sensor

Transformer noise sensor, using DC12V or battery power supply, used to obtain the noise signal of the transformer and convert the sound signal into a voltage signal.

Smart manhole cover monitor

The intelligent manhole cover monitor independently developed by the company only needs to install a terminal on the back of the existing manhole cover to realize the purpose of intelligently monitoring the manhole cover. It does not need to build a base station or signal receiver. It is small and easy to install. The appearance is sealed, and only external magnets are needed to switch the machine. Corrosion resistant, flame retardant, pressure resistant, shockproof, waterproof grade IP68

Smart electronic lock manhole cover

It is divided into active type intelligent electronic lock manhole cover and passive type intelligent electronic lock manhole cover. Active smart electronic lock manhole cover: The unlocking and locking supports remote remote unlocking (real-time online mode) and on-site application for unlocking (semi-offline mode); among them, the on-site application for unlocking is opened and closed through the network authorization method, which is handled by the handheld mobile terminal APP; the active alarm reporting process is initiated by the manhole cover And upload the encrypted data to the monitoring platform, and then pass it back to the State Grid platform for processing. Passive intelligent electronic lock manhole cover: Passive intelligent manhole covers use electronic keys/mobile handheld terminals (Mobile Phone/PDA) supply power to the electronic lock of the manhole cover, and open and close the lock through the network authorization method to realize the control of the entrance and exit of the channel.

Wireless temperature and humidity sensor

FC-5604 temperature and humidity sensor uses high-precision temperature and humidity probes, using LoRa wireless transmission mode, without on-site wiring, replacing traditional wired data acquisition products. The data measurement is accurate, the transmission sensitivity is high, the bit error rate is low, the installation is simple, the cost is low, and the service life is long.

Wireless switchgear partial discharge sensor

The partial discharge signal can be continuously monitored online through the sensor installed in each switch cabinet

Wireless temperature online monitoring system

The wireless temperature sensor is used to measure the temperature of the surface or contact of high-voltage live objects, such as the operating temperature of exposed contacts in high-voltage switch cabinets, busbar connections, outdoor switches and transformers. The wireless temperature sensor is composed of a temperature sensor, signal conditioning and amplification, logic control circuit, wireless modulation interface, etc.

Access control electromagnetic sensor

Aluminum alloy material: The door magnetic switch adopts aluminum alloy metal material, which is stable and safe to use. The connecting wire adopts 22# wire with a total length of 270mm. Suitable for use on walls, wooden door frames and cabinet doors;

Wireless SF6+O2+O3 sensor

Ultrasonic detection technology for sulfur hexafluoride detection overcomes shortcomings such as short service life and poor stability; the oxygen detection unit adopts imported sensors from the United States, which has high measurement accuracy and stable performance; the ozone detection unit adopts imported sensors, which have high measurement accuracy and output performance. Stable and long service life;

Smart IoT cable well

As part of the function of the power distribution cloud master station, the system module realizes the intelligent monitoring of cables and channels, gradually replaces manual inspections, and improves the quality and efficiency of operation and maintenance management. The system adopts a typical Internet of Things architecture system construction mainly including application layer, platform layer, communication layer, convergence layer, terminal layer. Application layer: including anti-theft alarm, cable online monitoring, intelligent inspection, statistics, alarm management, emergency repair management and other functions. Platform layer: It consists of centralized deployment of server nodes or cloud platforms. Communication layer: use wireless communication to establish data flow control, re-centralize and re-manage business data based on the decentralized information system, realize the storage and update of interactive process data, and perform effective utilization and analysis of collected measurement data and associated data for Various application functions of the system provide support. Convergence layer: The main cable well monitoring edge computing terminal is realized, including the collection and analysis of sensor data and the functions of data compression, protocol conversion, fault judgment, data analysis, etc., and the realization of in-situ calculations for some functional applications. Terminal layer: Various types of miniaturized, low-power sensors are used to collect environmental and status data, including environmental information such as the temperature, humidity, toxic and harmful gas concentration, manhole cover displacement, and cable connector temperature in the cable well. Intelligent operation and maintenance of power distribution cables.

Access Controller

This product can control single door/double door/four door Support wiegand26/34 interface card reader, fingerprint and other biometric card reader Support various door opening methods such as swiping card, card + password, pure password, etc.

Air conditioning controller

The air conditioner controller receives remote signals through RS232 or RS485 to control the on/off of the air conditioner and the corresponding mode and temperature, and has the function of self-starting upon incoming calls.

Wireless switchgear partial discharge sensor

The partial discharge signal can be continuously monitored online through the sensor installed in each switch cabinet Monitor and detect the regular and continuous abnormal insulation status signal in the switch Provide early warning of early failures, reduce unplanned downtime and reduce maintenance costs Can provide alarms, trends and forecasts, data storage for at least 10 years Computer operation without human influence
